MINING MACHINERY
DMT-5

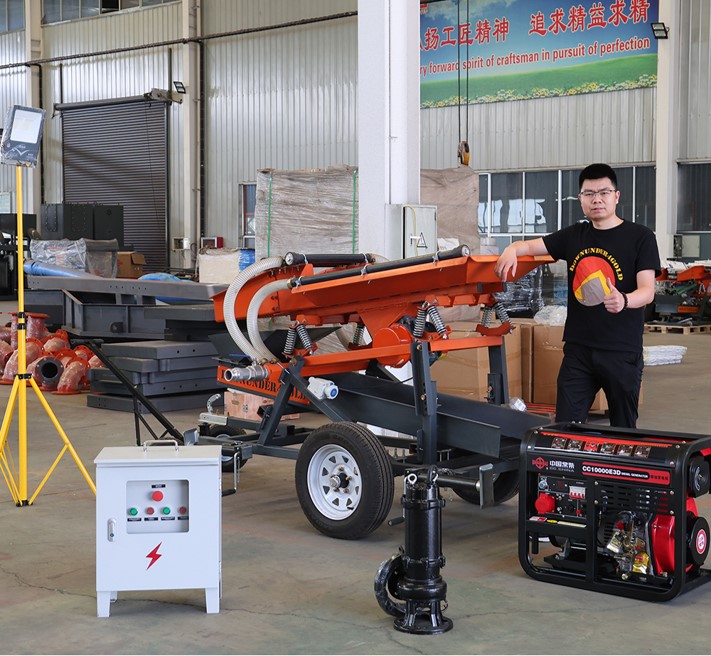

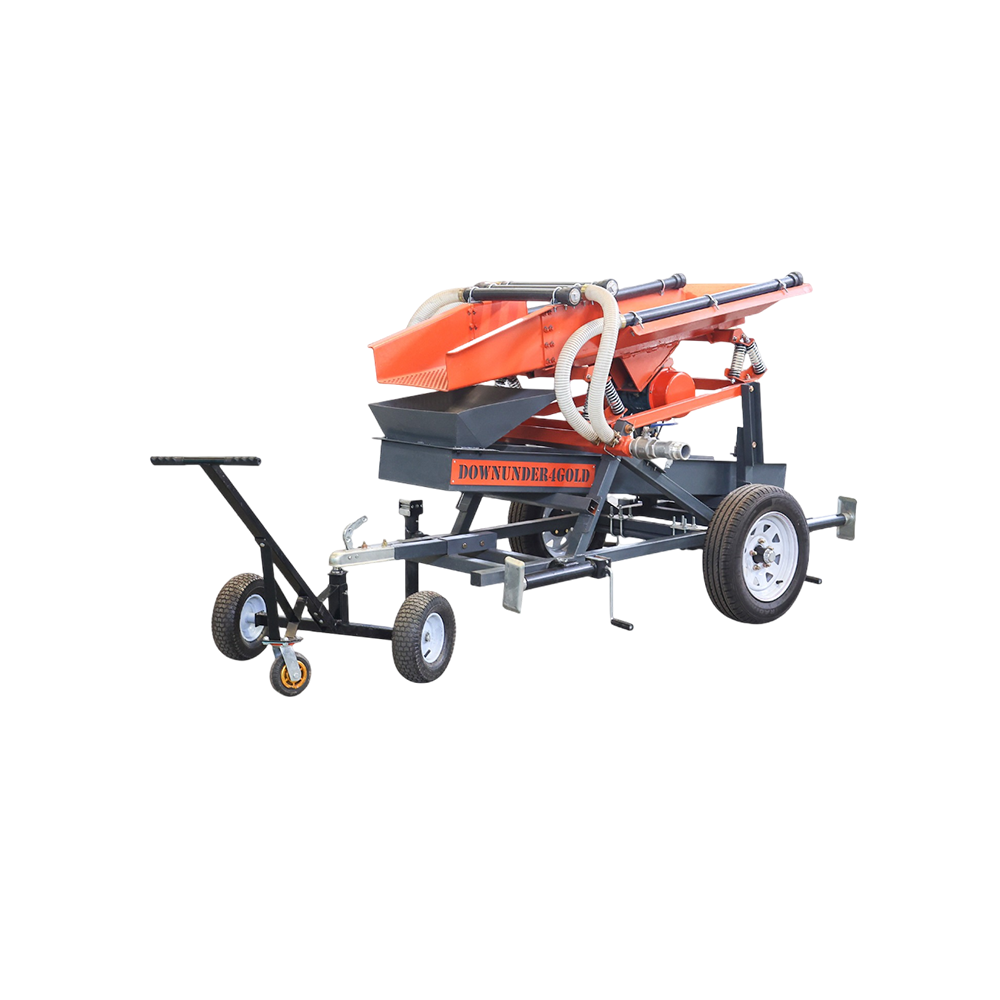

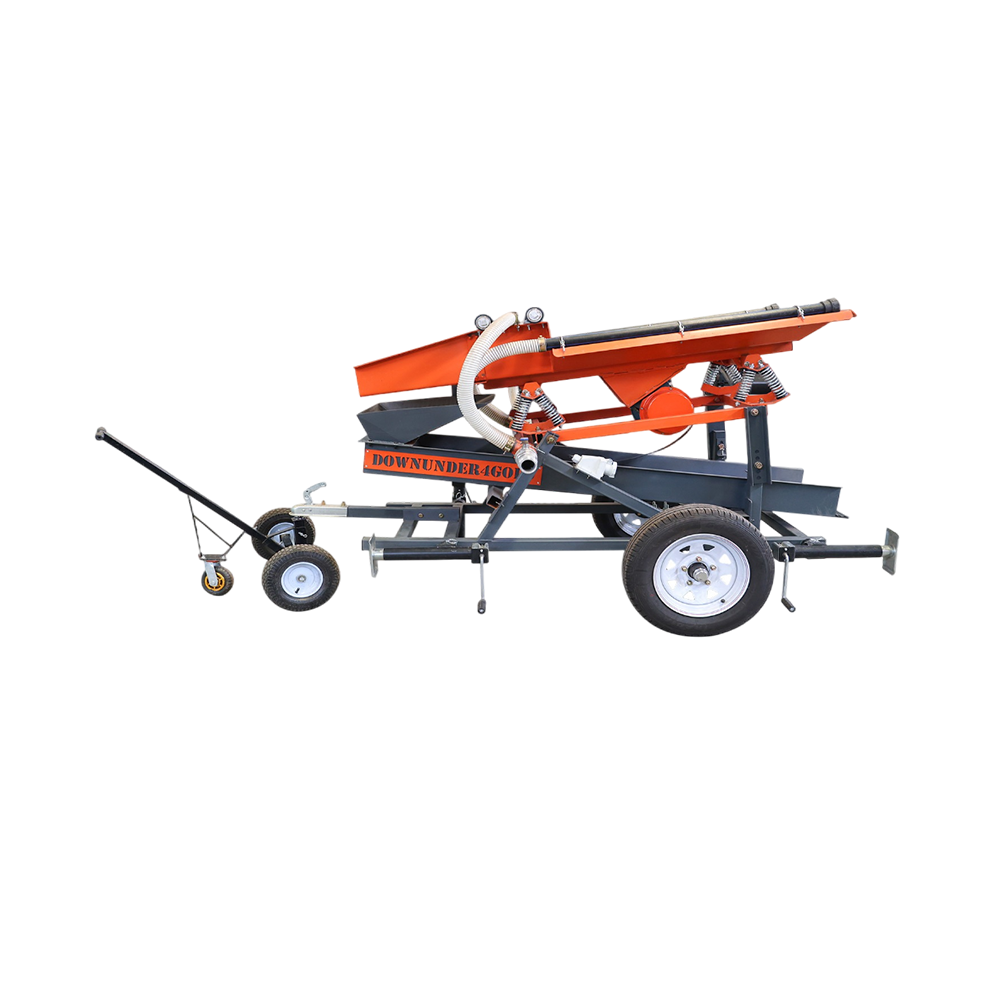

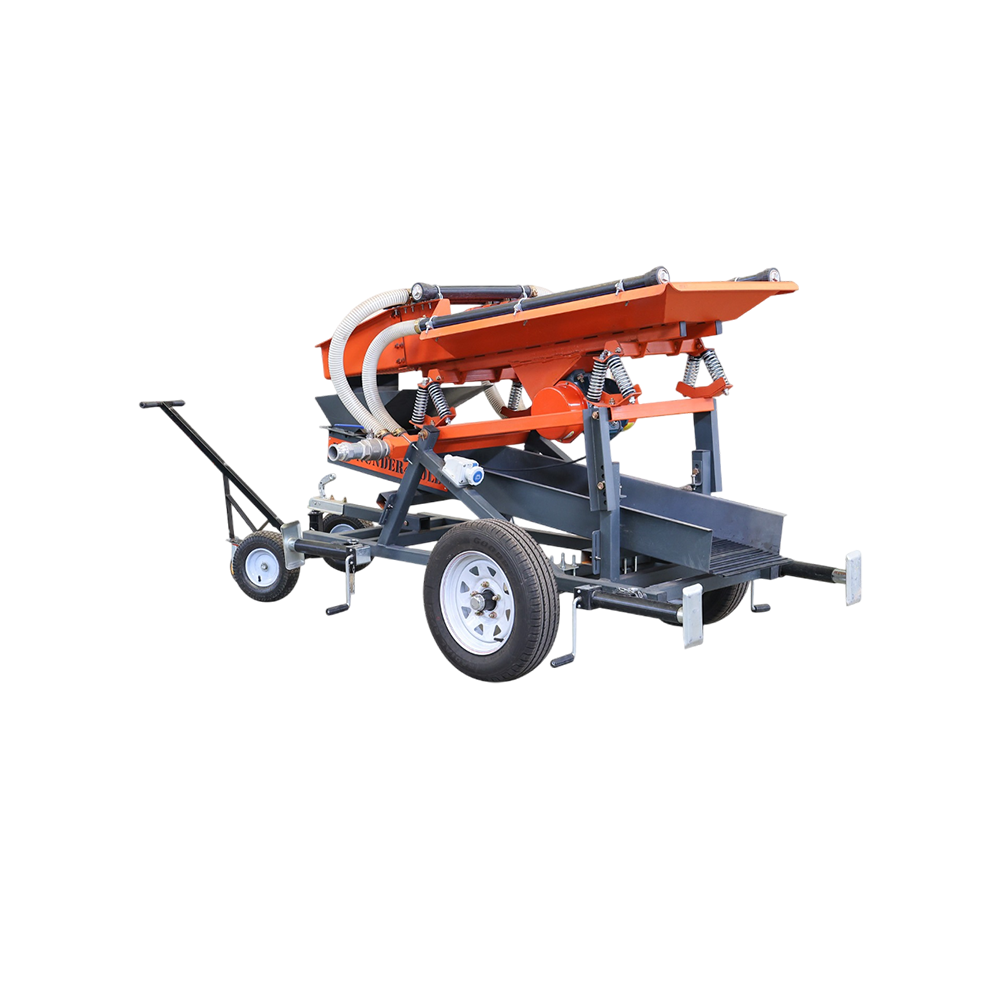

DMT-5 is a 5-ton-per-hour vibrating gold wash plant, is a compact and efficient piece of equipment designed for small-scale gold mining operations, prospecting, or testing gold-bearing areas. Unlike traditional trommel wash plants, this type of plant uses a vibrating screen to classify and wash material, making it highly efficient for processing smaller volumes of gold-bearing material. It is ideal for individual miners, small teams, or those working in remote locations with limited resources
Technical Specifications
- Model:DMT-5
- Capacity:5 tons per hour (depending on material type and conditions)
- Power Requirement:3–5 kW (depending on configuration)
- Water Requirement:15–25 m³/h
- Dimensions (L x W x H):2.0 * 1.2 * 1.5 m
- Weight:470 kg (depending on configuration)
- Material:High-grade steel (wear-resistant and durable)
- Screen Size:0.8 m * 2 m (approx.)
- Screen Mesh Size:Customizable (e.g., 10 mm, 20 mm, or 30 mm)
- Vibration Frequency:Adjustable for optimal material handling
- Spray Bars:4–6 bars with high-pressure nozzles for efficient washing
- Drive System:Electric motor
- Sluice Box Length:2 meters
- Riffle Design:Hungarian riffles or expanded metal riffles
- Matting:Rubber matting or miner's moss or dream mat for gold trapping
- Adjustability:Sluice angle can be adjusted for optimal recovery
- Warranty:1-year limited warranty
