MINING MACHINERY

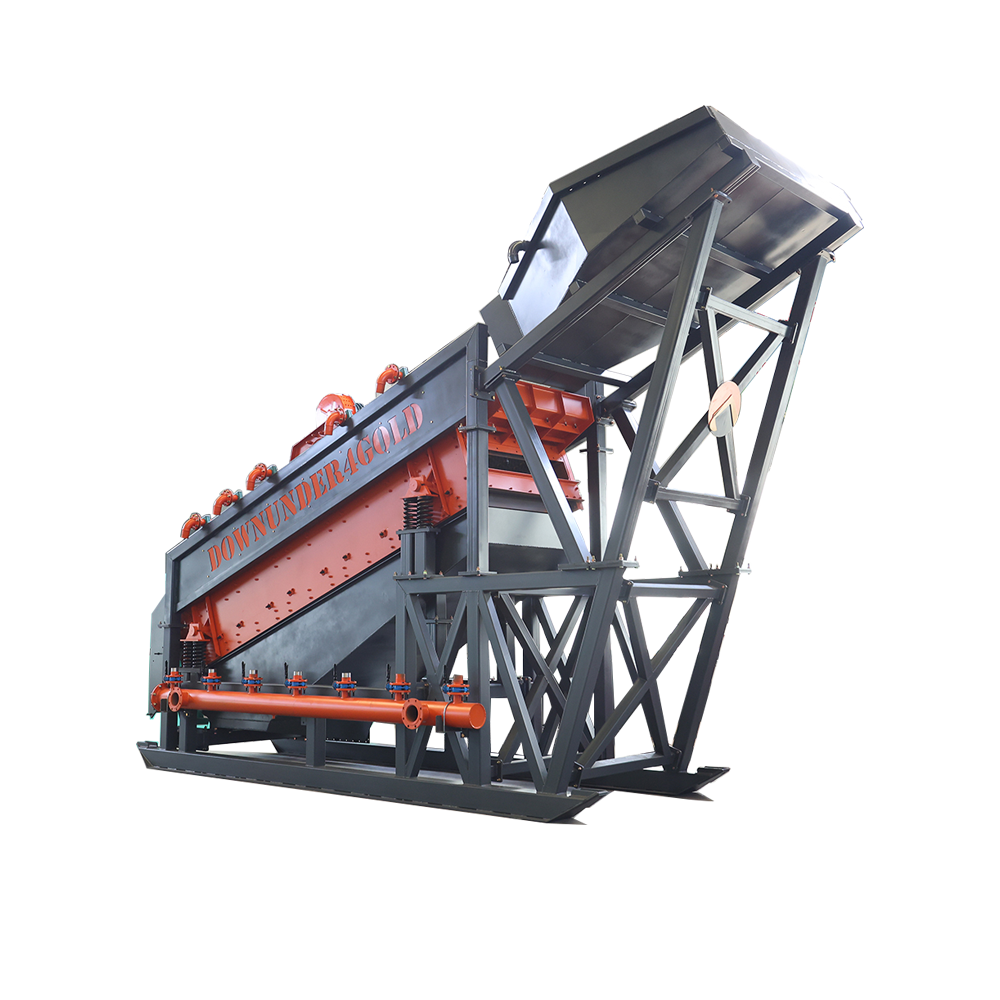

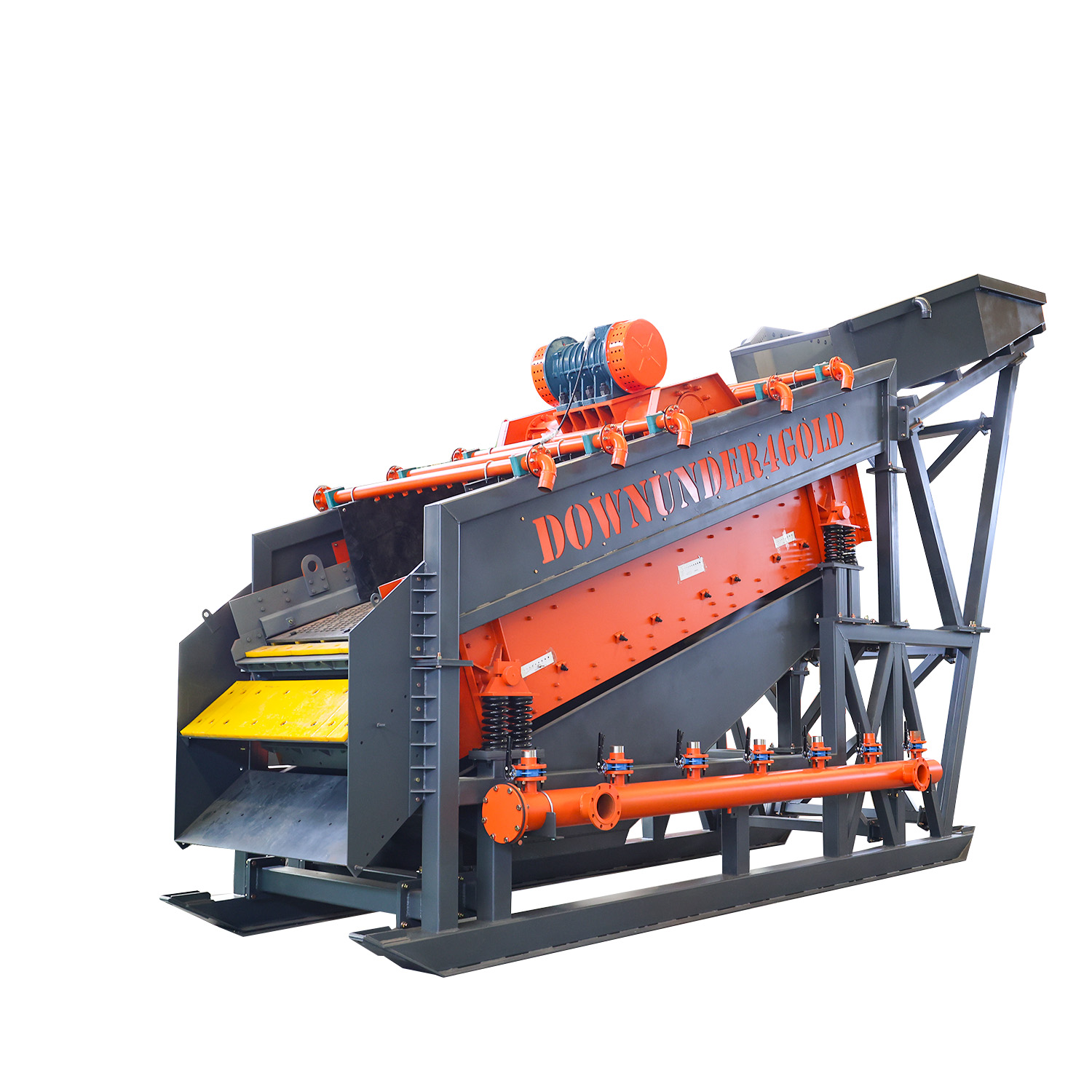

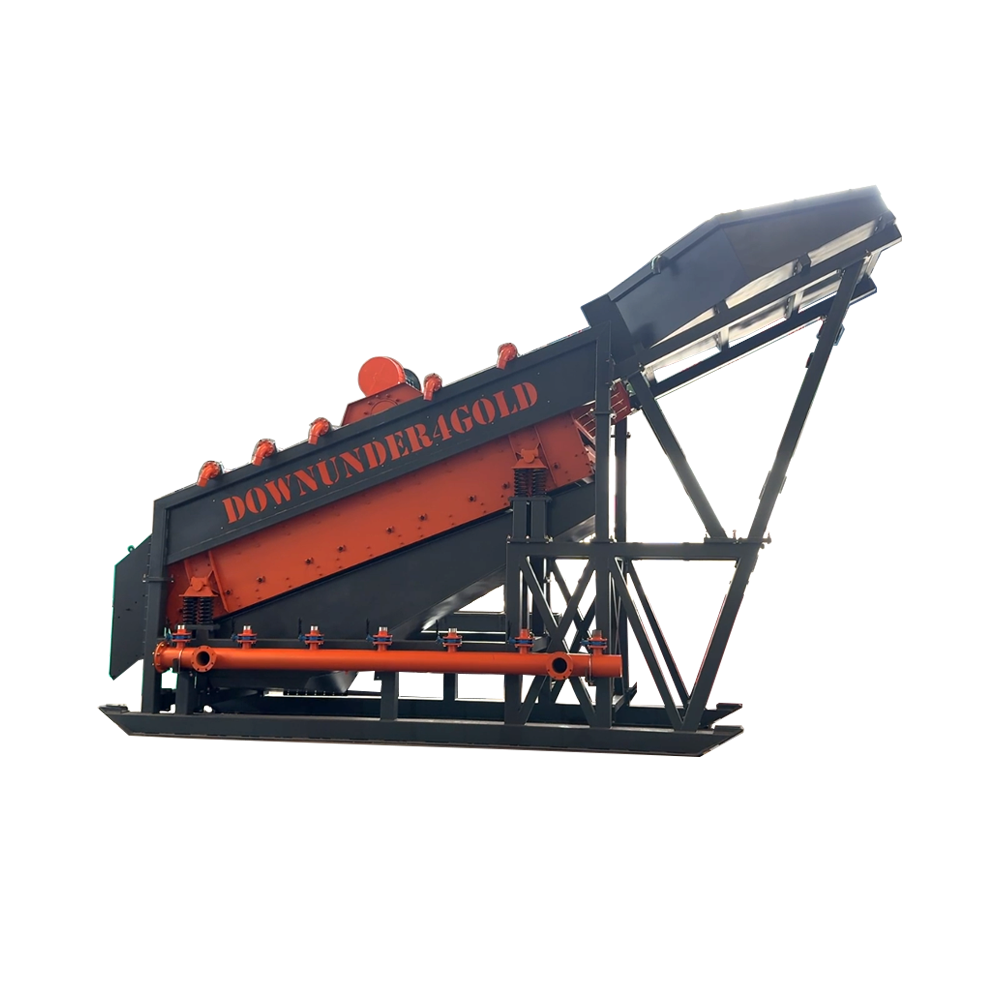

DMT-100SD

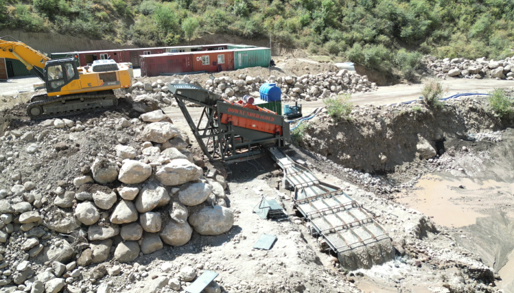

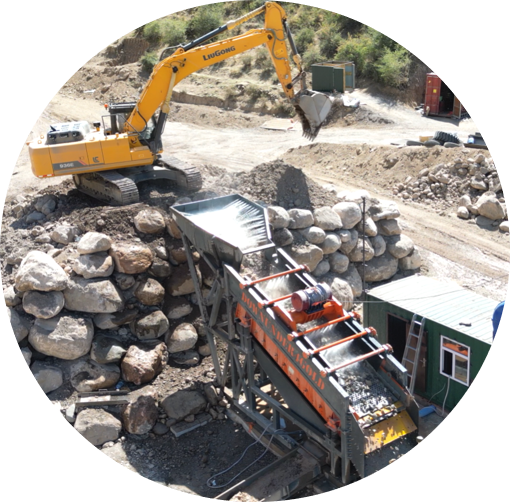

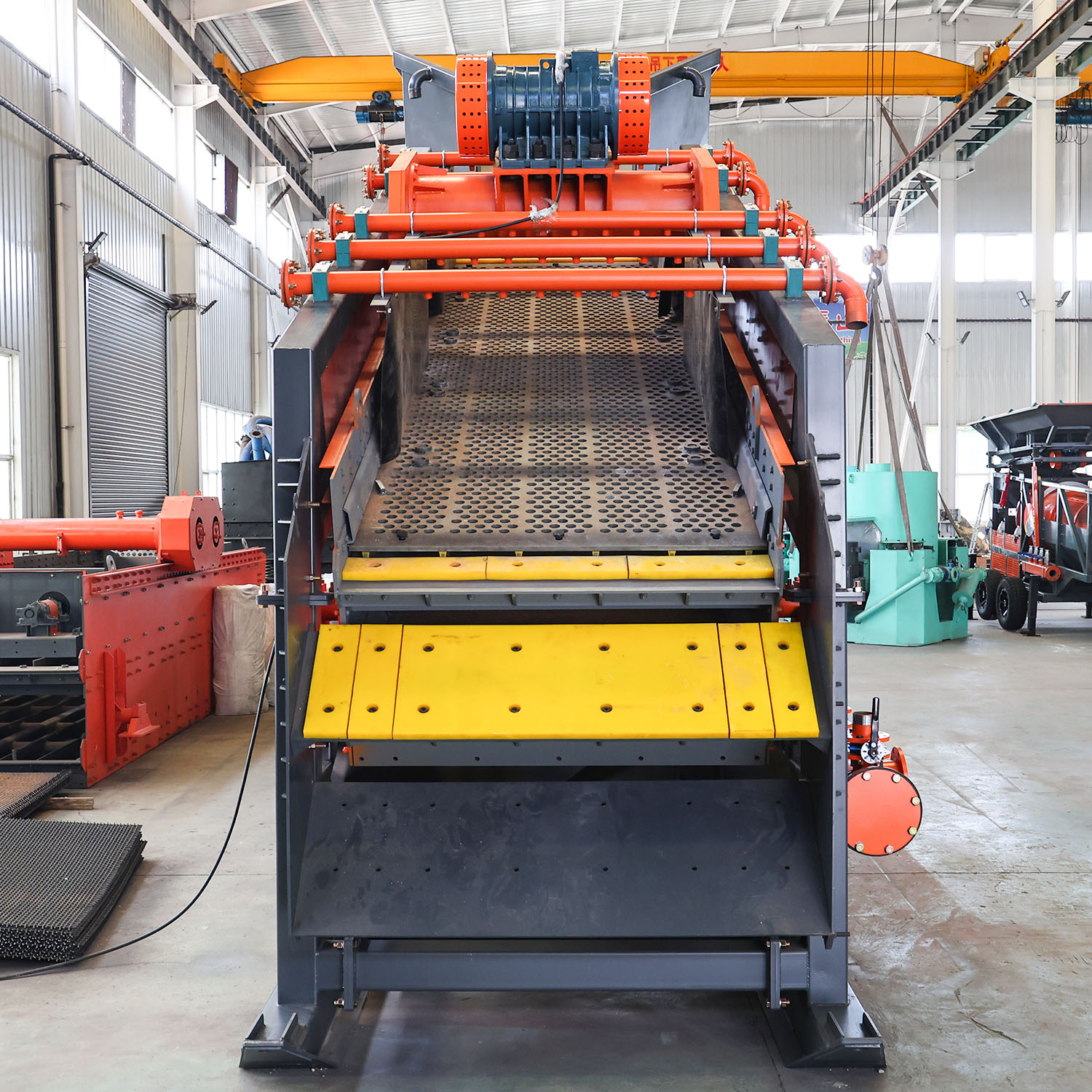

DMT-100SD gold shaker wash plant is a large-scale, high-capacity mining equipment designed for efficient gold recovery from placer deposits, such as riverbeds, alluvial soils, or other gold-bearing materials. This type of wash plant is capable of processing 100~200 tons of material per hour, making it ideal for commercial mining operations, large-scale contractors, or mining companies with significant gold-bearing material to process.
Technical Specifications
- Model:DMT-100SD
- Capacity:150–200 tons per hour (depending on material type and conditions)
- Power Requirement:60–100 kW (depending on configuration)
- Water Requirement:400 m³/h
- Dimensions (L x W x H):8900 * 2300 * 5700 mm (approx.)
- Weight:12,000–16,000 kg (depending on configuration)
- Material:High-grade steel (wear-resistant and durable)

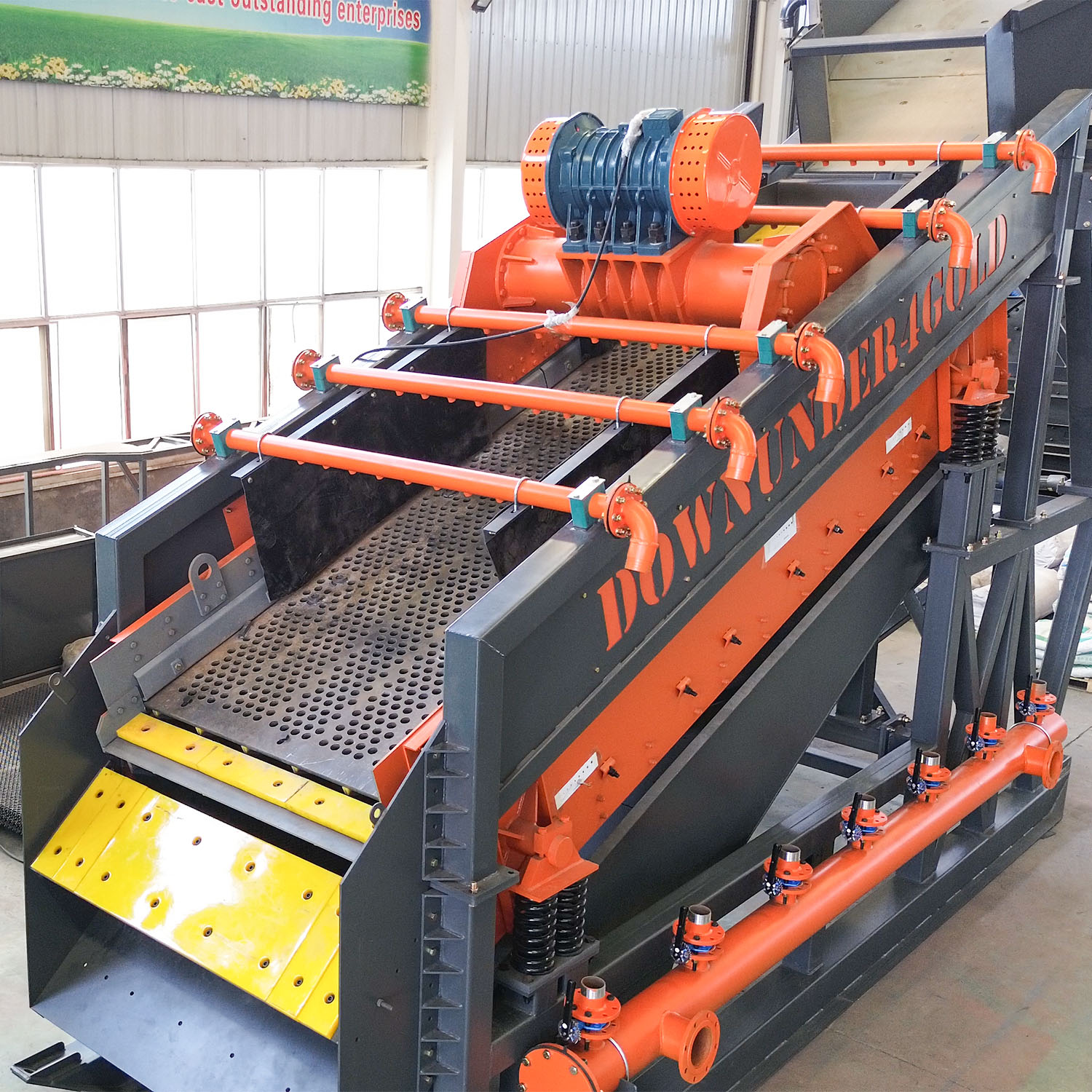

- Shaker Deck Specifications:null
- Screening Area:7.5 m² (1.5 m * 5 m)
- Feed Hopper Size:3.4 * 2.4 m (suitable for container loading)
- Screen Mesh Size:Customizable (e.g., 10 mm, 20 mm, or 30 mm)

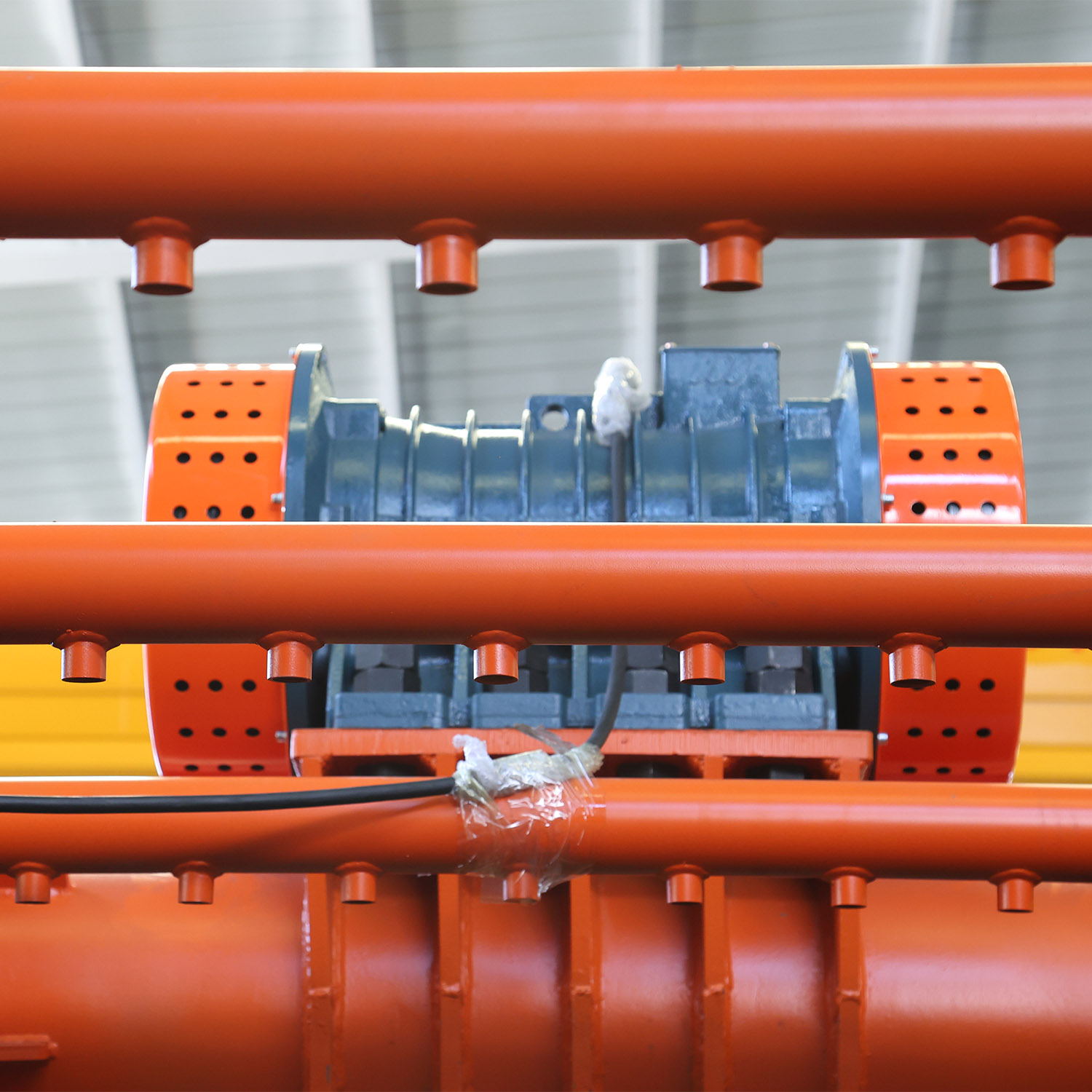

- Deck Drive Type:Vibrating motor 11 kW
- Screen Material:High manganese steel
- Electric Control Cabinet:11 kW soft start box
- Sluice Box Specifications:null
- Length:6–12 meters
- Width:1.0 meters or 2.0 meters
- Riffle Design:Hungarian riffles or expanded metal riffles
- Matting:Rubber matting or miner's moss or dream mat for gold trapping
- Adjustability:Sluice angle can be adjusted for optimal recovery
- Water System:null

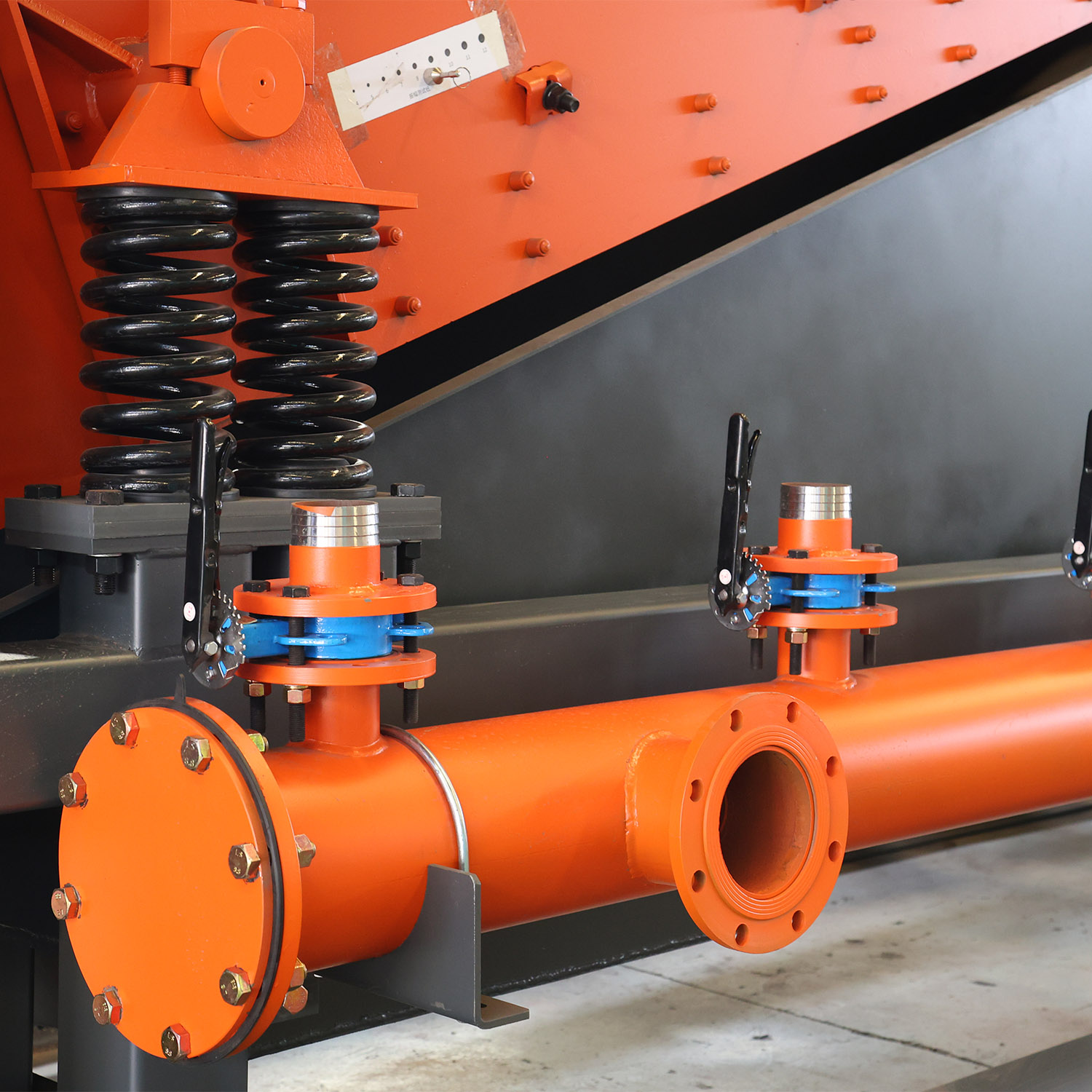

- Water Pump:8-inch centrifugal pump or submersible pump
- Flow Rate:400–600 m³/h
- Water Recycling:Optional water recycling system available
- Hose Diameter:6–8 inches
- Hose Type:PVC lay-flat or rubber hose
- Electric Motor:Vibrating motor 11 kW + Water pump 55 kW (standard)
- Diesel Engine:Optional for remote locations
- Generator:Available as an add-on for off-grid operations
- Warranty:1-year limited warranty
- Technical Support:Available for setup, operation, and troubleshooting
- Spare Parts:Readily available for quick replacements
