MINING MACHINERY

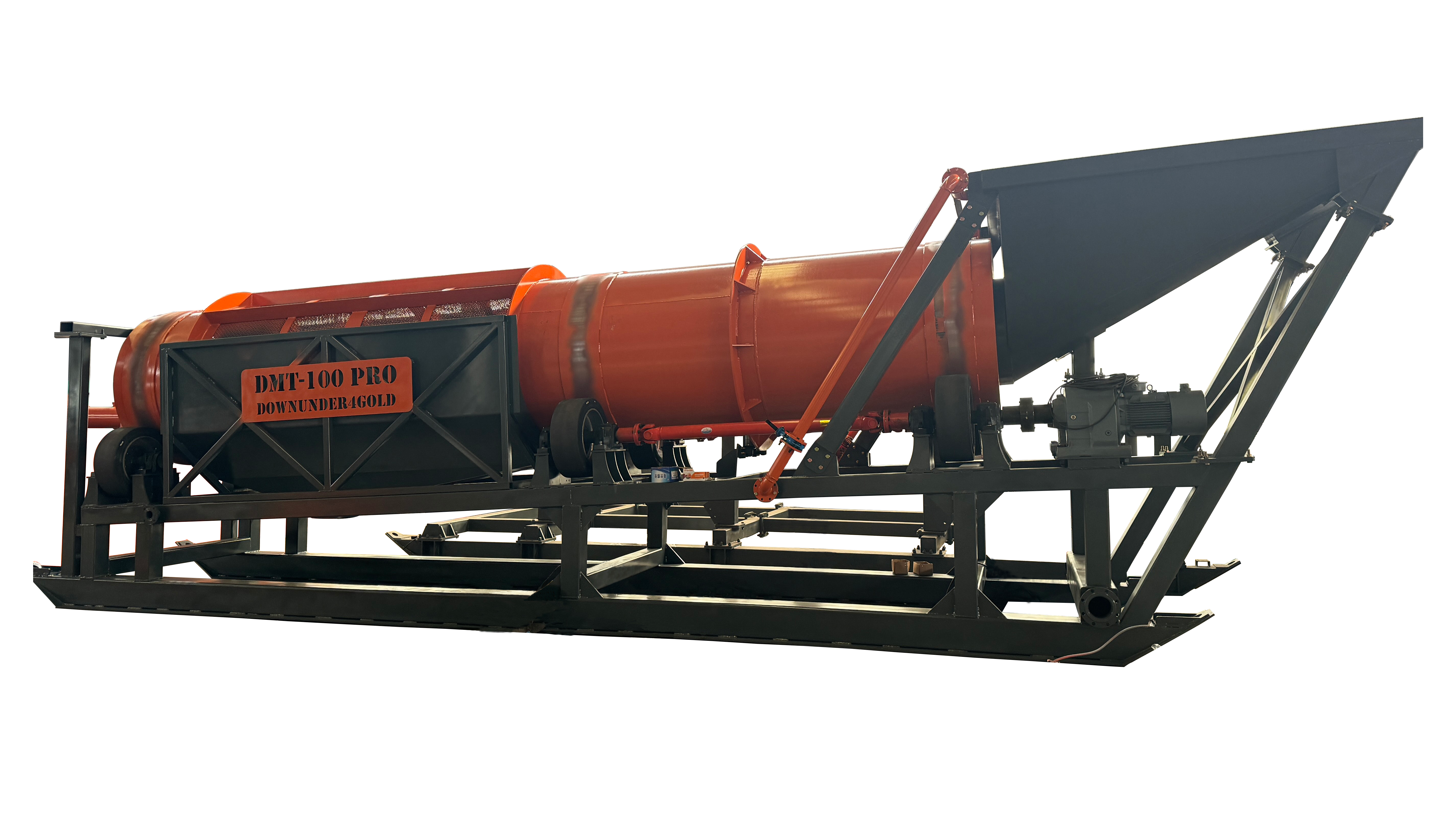

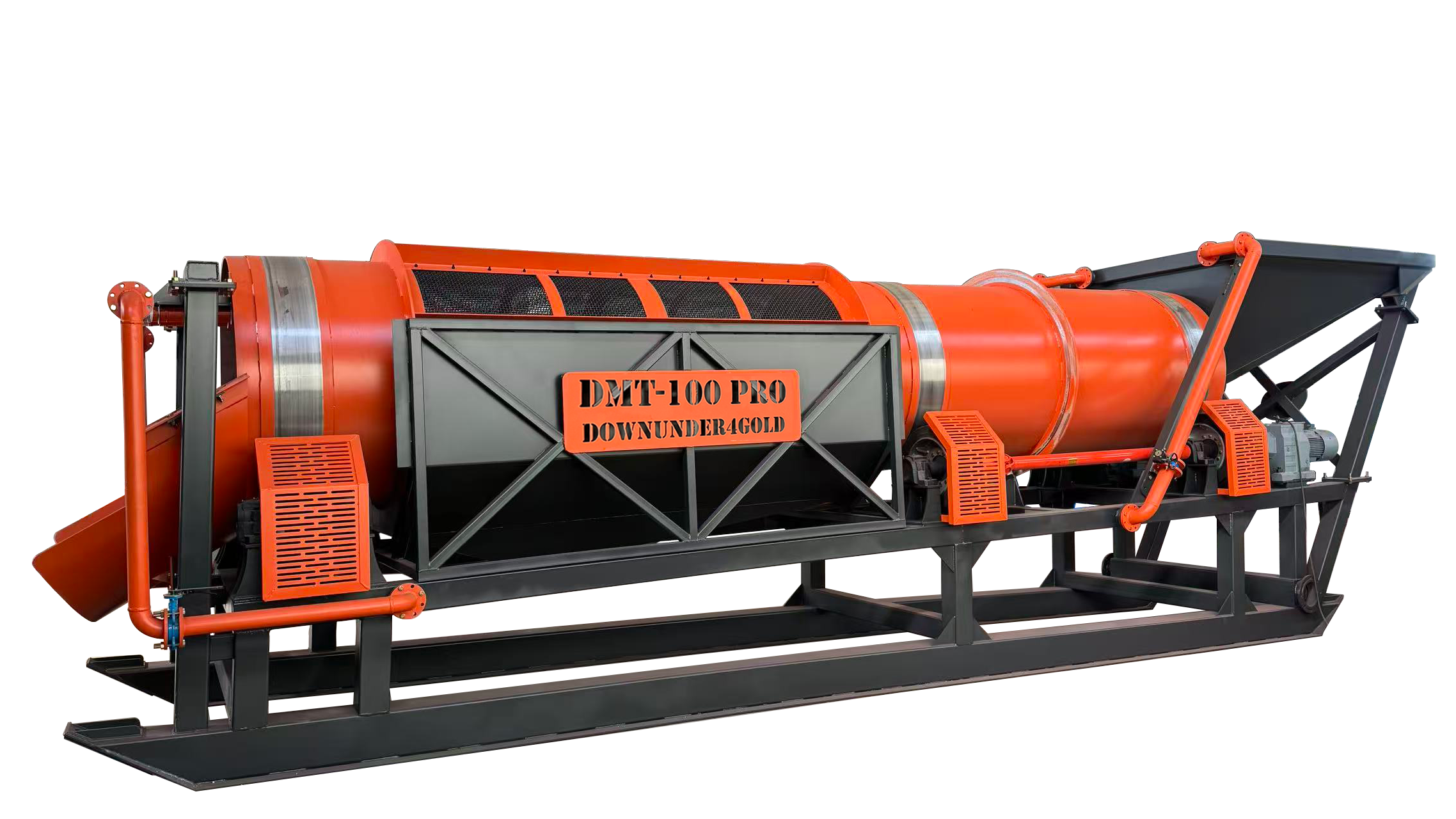

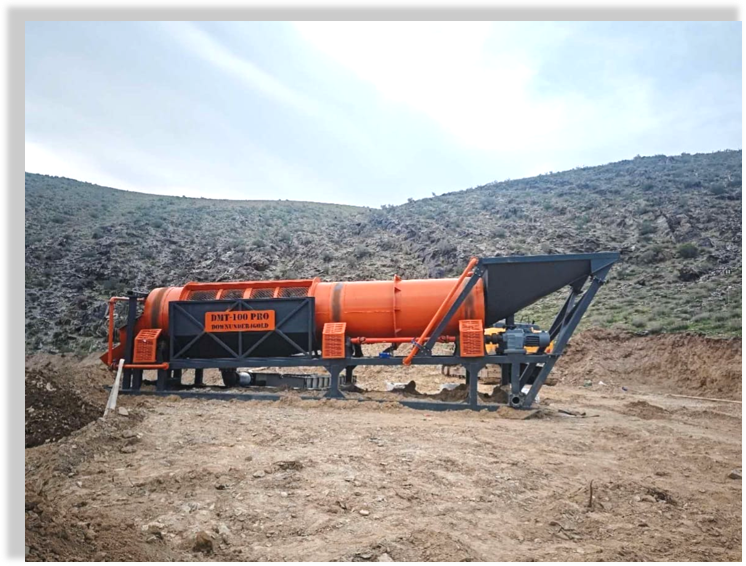

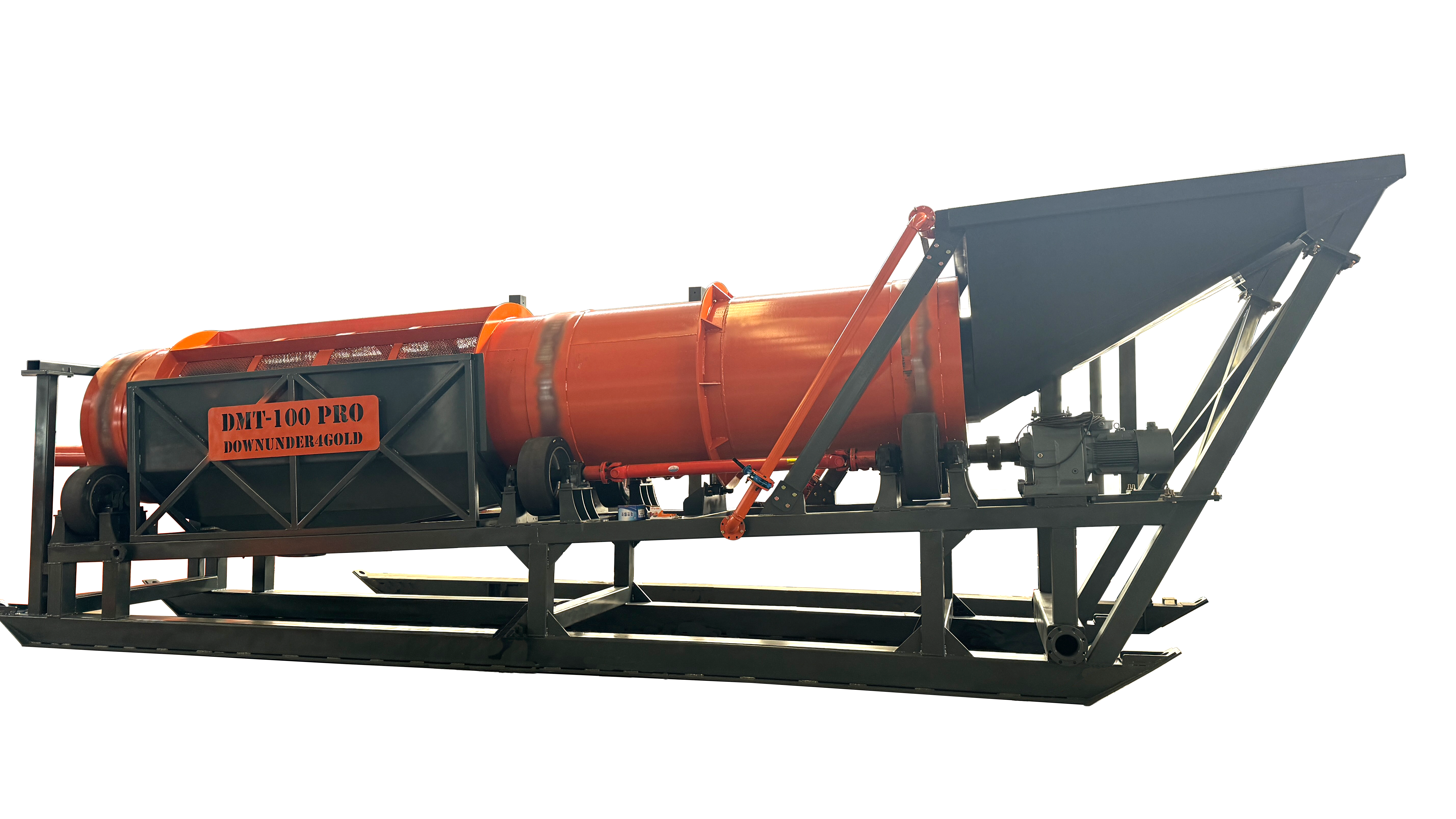

DMT-100 Pro

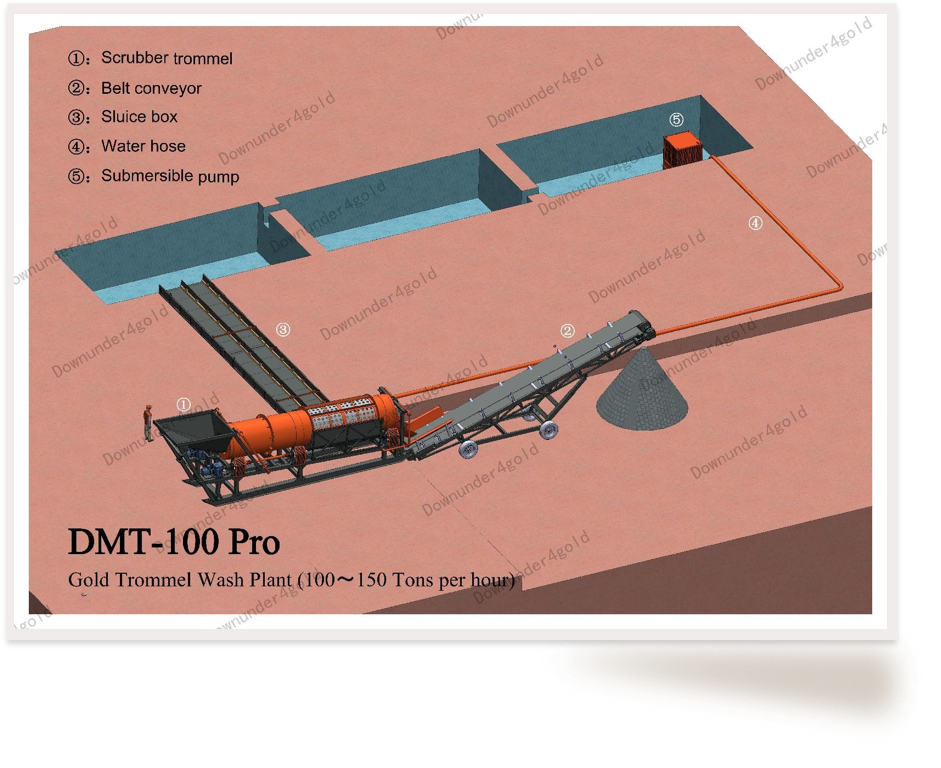

DMT-100 Pro gold trommel wash plant is a large-scale, high-capacity mining equipment designed for efficient gold recovery from placer deposits, such as riverbeds, alluvial soils, or other gold-bearing materials. This type of wash plant is capable of processing 100-150 tons of material per hour, making it ideal for commercial mining operations, large-scale contractors, or mining companies with significant gold-bearing material to process.
Technical Specifications
- Model:DMT-100 Pro
- Capacity:100–150 tons per hour (depending on material type and conditions)
- Power Requirement:60–100 kW (depending on configuration)
- Water Requirement:200–400 m³/h
- Dimensions (L x W x H):11800 * 2300 * 3500 mm (approx.)
- Weight:17,000–22,000 kg (depending on configuration)
- Material:High-grade steel (wear-resistant and durable)
- Trommel Diameter:1.5 meters
- Trommel Length:8.5 meters
- Screen Mesh Size:Customizable (e.g., 10 mm, 20 mm, or 30 mm)
- Rotation Speed:8–12 RPM (adjustable)
- Spray Bars:6–8 bars with high-pressure nozzles for efficient washing
- Drive System:Electric motor

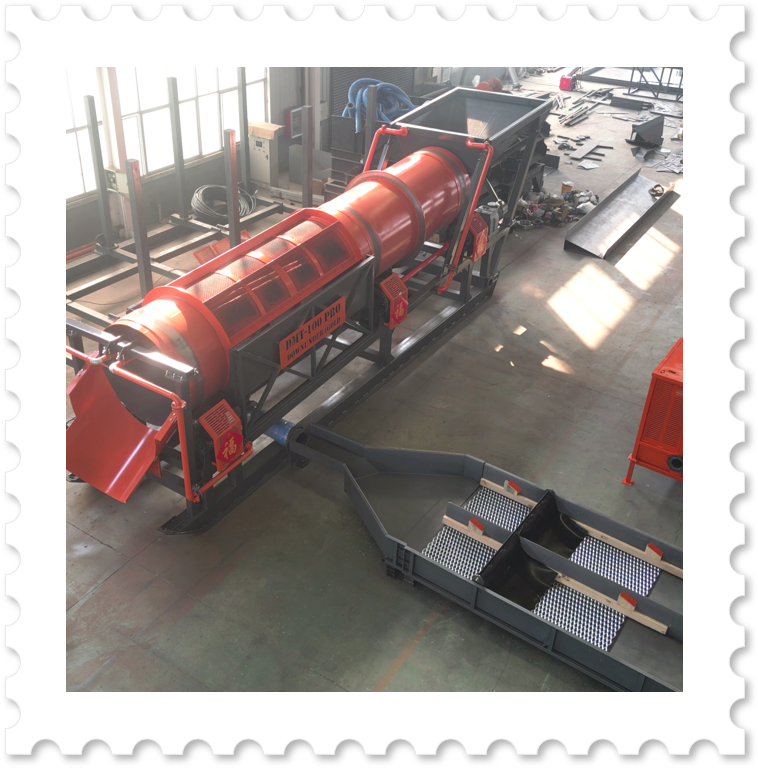

- Sluice box length:6 meters or 12 meters (customer preference)
- Sluice box width:1.0 meter or 2.0 meters (customer preference)
- Riffle Design:Hungarian riffles or expanded metal riffles
- Matting:Rubber matting, miner's moss, or dream mat for gold trapping
- Sluice angle adjustability:Can be adjusted for optimal recovery
- Water Pump:6–8 inch centrifugal pump or submersible pump
- Flow Rate:200–350 m³/h
- Water Recycling:Optional water recycling system available
- Hose Diameter:6–8 inches
- Hose Type:PVC lay-flat hose or rubber hose
- Electric Motor:Trommel 30 kW + Water pump 37 kW (standard)
- Diesel Engine:Optional for remote locations
- Diesel Generator:Available as an add on for off grid operations
- Warranty:1-year limited warranty
- Technical Support:Available for setup, operation, and troubleshooting
- Spare Parts:Readily available for quick replacements
