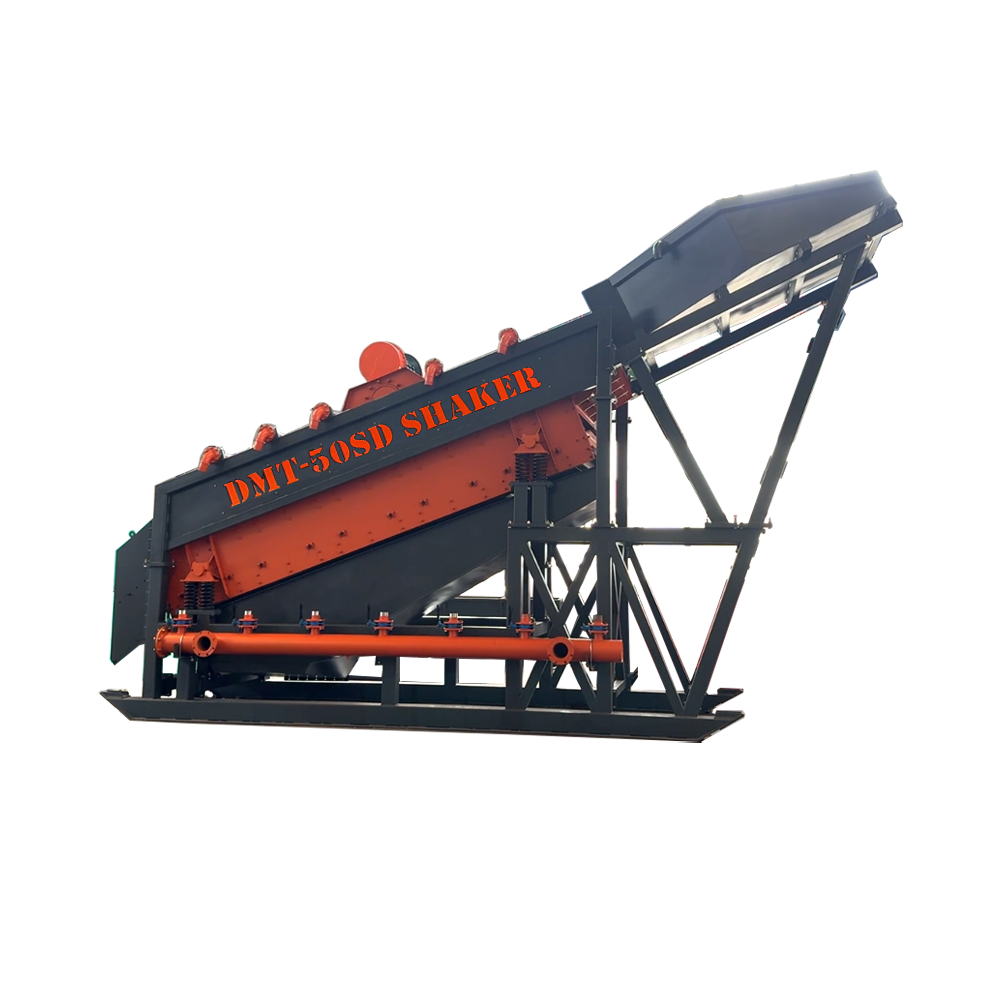

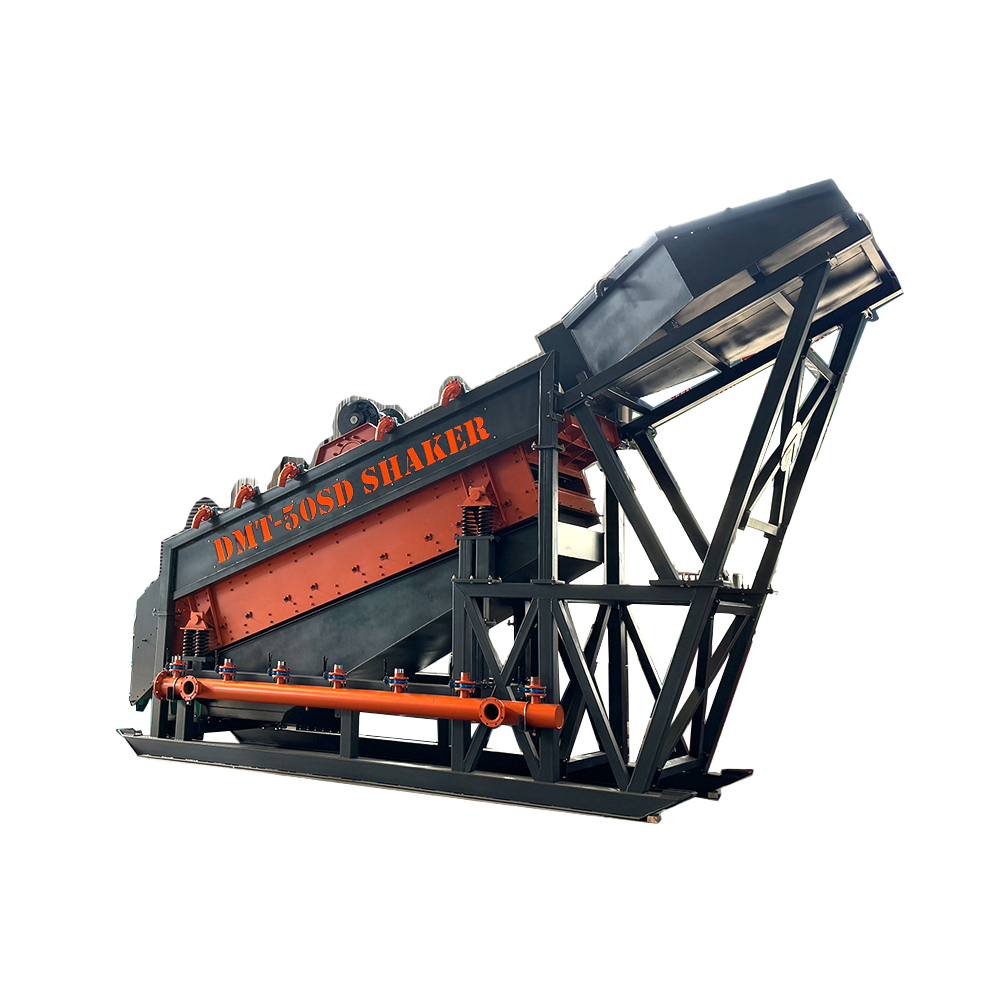

DMT-50SD

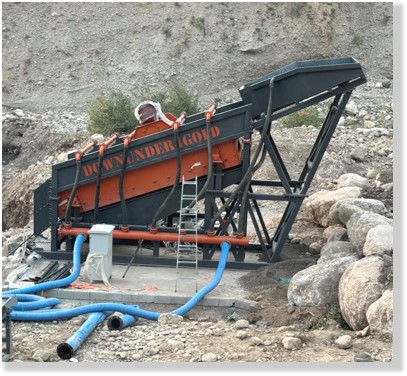

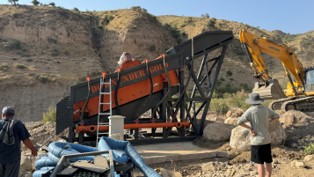

DMT-50SD gold shaker wash plant is a large-scale, high-capacity mining equipment designed for efficient gold recovery from placer deposits, such as riverbeds, alluvial soils, or other gold-bearing materials. This type of wash plant is capable of processing 50~100 tons of material per hour, making it ideal for commercial mining operations, large-scale contractors, or mining companies with significant gold-bearing material to process.
Technical Specifications
- Model:DMT-50SD
- Capacity:50–100 tons per hour (depending on material type, clay content, and operating conditions)
- Power Requirement:30–50 kW (depending on configuration)
- Water Requirement:200 m³/h
- Dimensions (L x W x H):7500 * 2000 * 4900 mm (approx.)
- Weight:8,500–12,000 kg (depending on configuration)
- Material:High-grade wear-resistant steel designed for continuous mining operations
- Shaker Deck screening Area:4.8 m² (1.2 m * 4 m)
- Feed Hopper Size:2.8 * 2.2 m (suitable for container loading)
- Screen Mesh Size:Customizable (e.g., 10 mm, 20 mm, or 30 mm depending on material size)
- Deck Drive Type:Vibrating motor 7.5 kW for stable and efficient screening
- Screen Material:High manganese wear-resistant steel for extended service life
- Electric Control Cabinet:7.5 kW soft start control box for smooth equipment operation
- Sluice box length:6 meters or 12 meters (customer preference)
- Sluice box width:1.0 meter or 2.0 meters (customer preference)
- Riffle Design:Hungarian riffles or expanded metal riffles for efficient gold trapping
- Matting:Rubber matting, miner's moss, or dream mat designed for fine gold recovery
- Sluice angle adjustability:Can be adjusted for optimal recovery under different operating conditions
- Water Pump:6-inch centrifugal pump or submersible pump
- Flow Rate:200–300 m³/h depending on operating conditions
- Water Recycling:Optional water recycling system available for reduced water consumption
- Hose Diameter:6 inches
- Hose Type:PVC lay-flat hose or rubber hose suitable for mining operations
- Electric Motor:Vibrating motor 7.5 kW + Water pump 30 kW (standard configuration)
- Diesel Engine:Optional for remote locations without stable electricity supply
- Diesel Generator:Available as an add on for off grid operations
- Warranty:1-year limited warranty
- Technical Support:Available for installation, assembly setup, operation, and troubleshooting (upon customer request)
- Spare Parts:Readily available for quick replacements
