DMT-50E

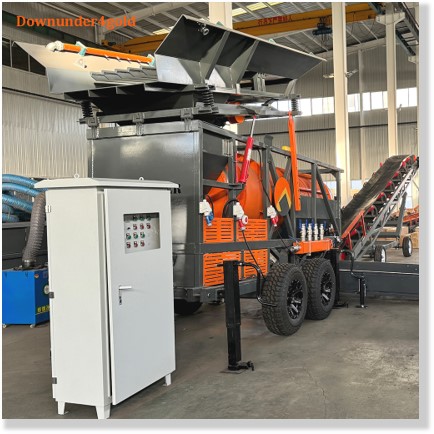

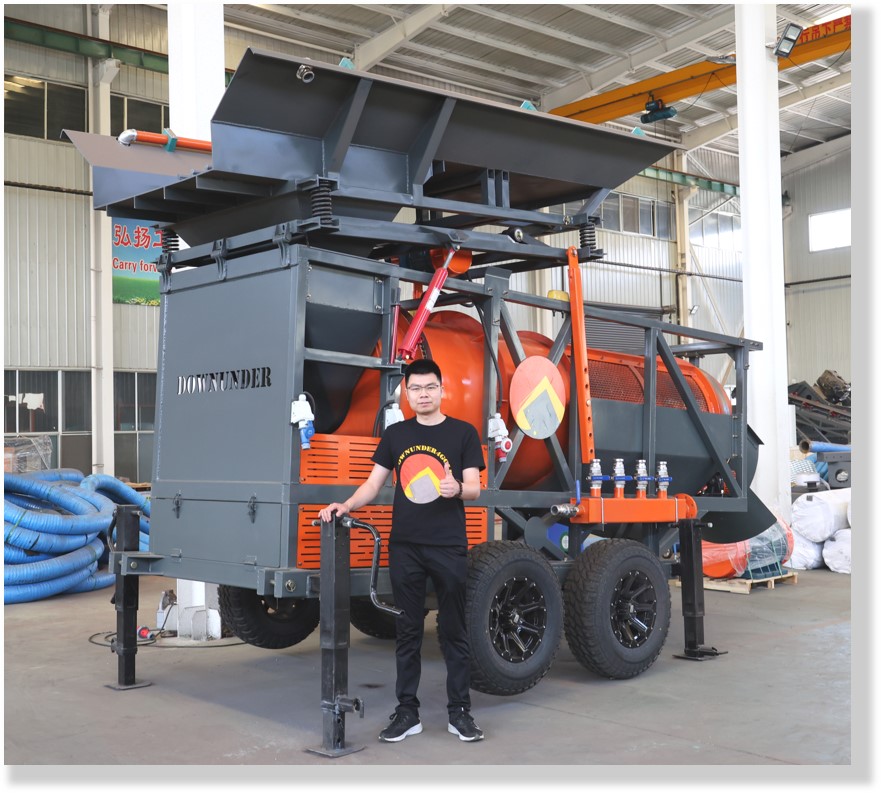

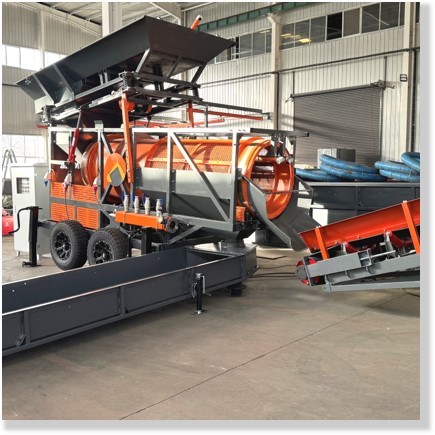

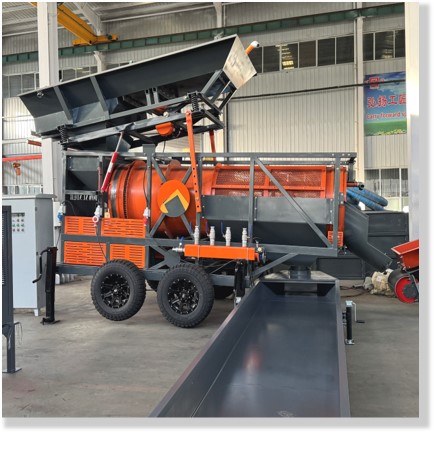

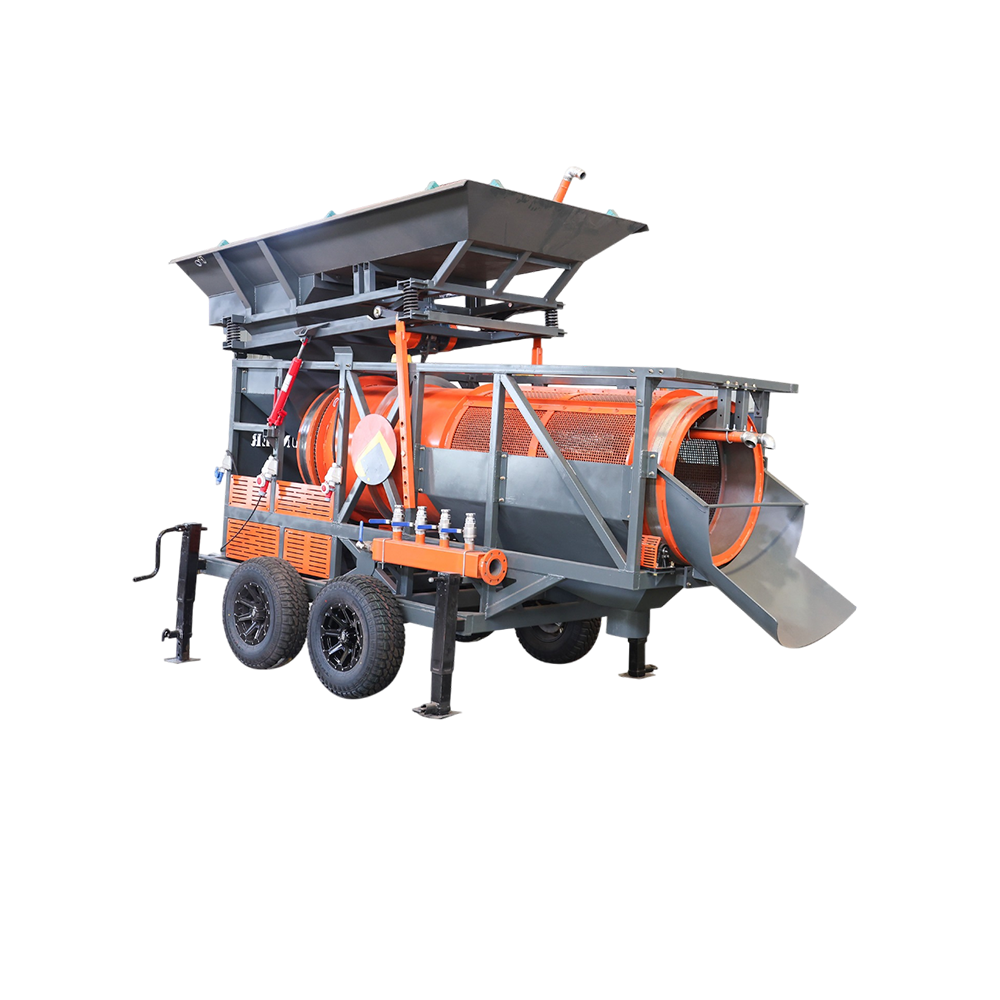

DMT-50E gold trommel wash plant is a medium to large-scale mining equipment designed for efficient gold recovery from placer deposits, such as riverbeds, alluvial soils, or other gold-bearing materials. This type of wash plant is capable of processing 50 tons of material per hour, making it suitable for larger mining operations or contractors who need higher throughput compared to mini wash plants.
Technical Specifications
- Capacity:50 tons per hour (depends on material type and conditions)
- Power Requirement:20-30 kW (depends on configuration)
- Water Requirement:100 m³/h
- Dimensions:(L x W x H) 5600mm*2000mm*3500mm (approx.)
- Weight:5,000-7,000 kg (depends on configuration)
- Material:High grade steel (wear-resistant and durable)
- Trommel Diameter:1.0 meter
- Trommel Length:4.0 meters
- Screen Mesh Size:Customizable (e.g., 10mm, 20mm, or 30mm)
- Rotation Speed:8-12 RPM (adjustable)
- Spray Bars:6-8 bars with high-pressure nozzles for efficient washing
- Drive System:Electric motor or diesel engine (customer preference):
- Sluice Box:null
- Sluice box length:6 meters or 12 meters (customer preference)
- Sluice box width:1.0 meter or 2.0 meters (customer preference)
- Riffle Design:Hungarian riffles or expanded metal riffles
- Matting:Rubber matting, miner's moss or dream mat for gold trapping
- Sluice angle:can be adjusted for optimal recovery
- Water Pump:4 or 6 inch centrifugal pump or submersible pump
- Flow Rate:100 m³/h - 150 m³/h
- Water Recycling:Optional water recycling system is available
- Hose Diameter:4 - 6 inches
- Hose Type:PVC Lay flat or rubber hose
- Electric Motor:Trommel 7.5kw + Water pump 18.5kw (standard)
- Diesel Generator:Available as an add on for off grid operations
- Warranty:1 year limited warranty
- Technical Support:Available for installation, assembly setup, operation, and troubleshooting (as per customer request)
- Spare Parts:Readily available for quick replacements
